RAYSCAN Alpha Plus (AP120)
NEW! Affordable addition to the ultra popular Rayscan Alpha Plus family of CBCTs
The Alpha Plus 12x10 embodies all the same technologies and added value features of the Premium Alpha Plus Platform:

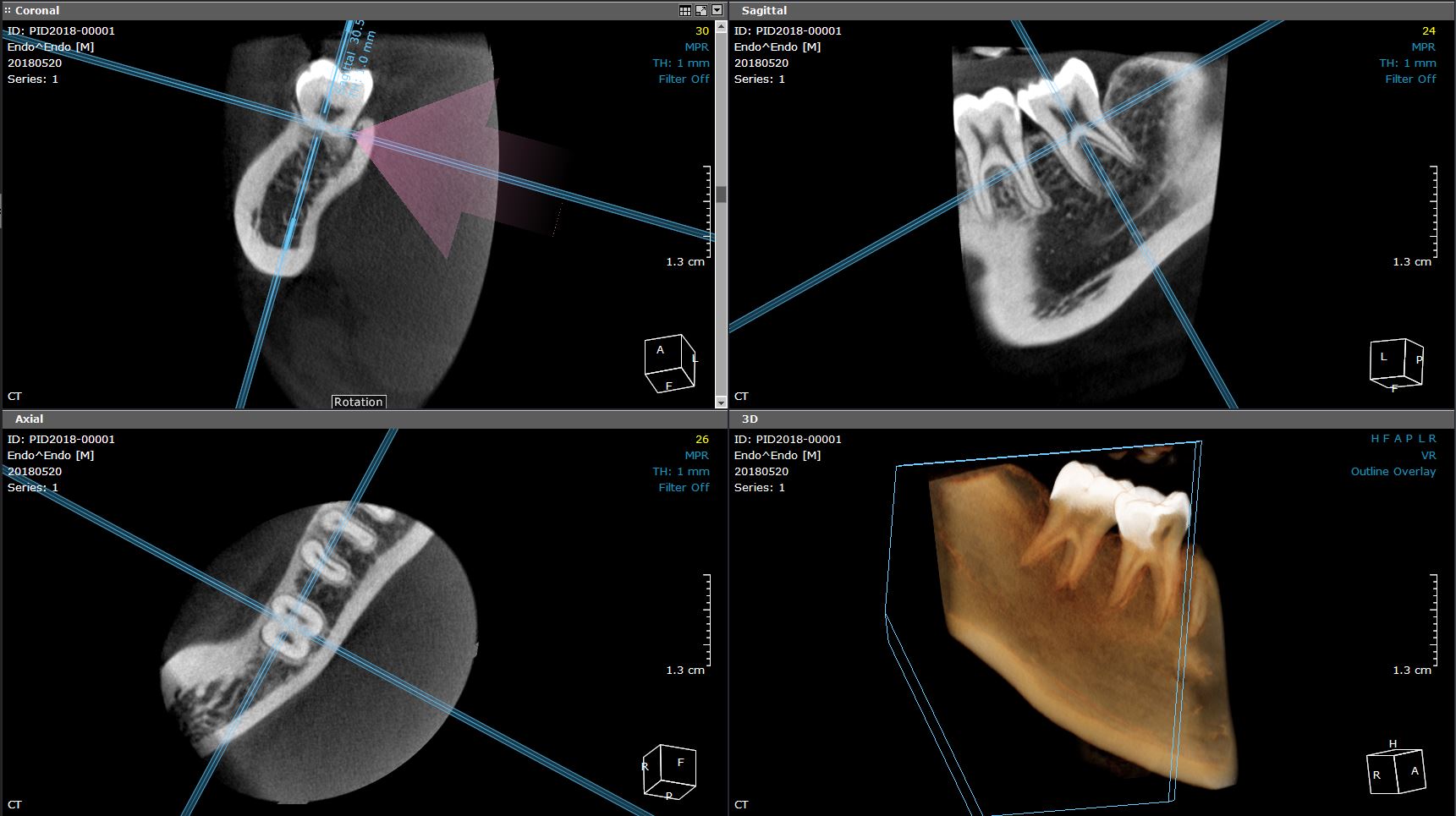

- Smallest Voxel Size in the World (70µm Endo Mode)
- Super Fast Recon time
- Free Range FOV - Blue Light ROI Preview Window
- DICOM-to-STL Conversion Package
- Omni Directional Remote + Touchscreen Control Panel
- 10 Year Mfg Warranty
- 10 Year "Rayguard" 24/7 System Health Monitoring Service
All the benefits of Rayscan's flagship model - at an entry level model's price. Upgrade options available to MAX FOV 16x10
Minimum Working Space: 50"W x 59"D (82"W with Ceph)
Specifications:
- Pano + CBCT (Ceph Optional)
- FOV - Free range up to 12x10cm
- Focal Spot - 0.5mm
- Voxel Size - 70-400µm
- Scan Time - CBCT (4.9-14s); Panoramic (6.2-13s)
- Tube Voltage - 60-90kVp
10 Year Mfg. Warranty
